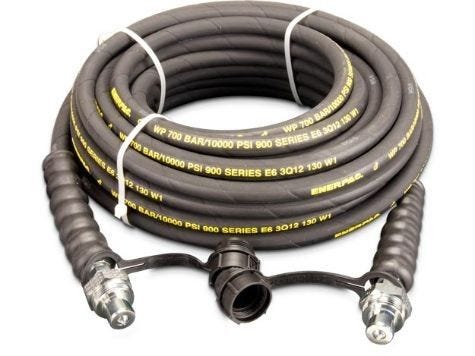

Hose Hydraulic, High Pressure, 50ft Length, w/CH-604 Both End, .25'' I.D., ENERPAC (HC9250C)

Enerpac
in stock

SKU #133363

M/C HC9250C


$842.77
Add to Wish List

Hose Hydraulic, High Pressure, 50ft Length, w/CH-604 Both End, .25'' I.D.

Enerpac H900-Series high-pressure hydraulic hoses are heavy-duty, rated for 10,000 psi (700 bar) and rubber coated. They provide the optimum combination of flexibility and low "memory" needed for long hose runs.

Each hose contains two layers of steel wire braids covered by a rubber sleeve to ensure a long life in tough working environments.

Internal diameters available are 0.25 and 0.38” (6.4 and 9.7mm). Connection types available are ¼” NPTF, ⅜" NPTF, and CH604.

Features:

  • Crimped-on rubber strain relief for improved life and durability
  • Maximum working pressure of 10,000 psi
  • Rubber coated with two layers of steel wire braids
  • Designed to comply with Material Handling Institute IJ-100 hose specification
  • Flexible, with little "memory", is the best choice for long hose runs

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 PSI 700 bar
Internal Diameter 0.25 In 6,4 mm
End One Coupler CH604 CH604
End Two Coupler  CH604 CH604
Oil Capacity 29.46 in3 482.76 cm3
Length 50 ft 15.0 m
Weight 20 lbs 9.07 kg

Weight

9.0700

Body Material

Rubber
