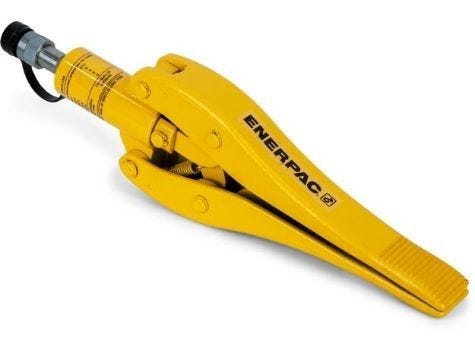

Hydraulic Wedgie And Spread Cylinder, Capacity: 0.75 Ton, ENERPAC (WR15)
Enerpac
in stock
SKU #133674
M/C WR15
$1,583.44
Hydraulic Wedgie And Spread Cylinder, Capacity: 0.75 Ton
The WR15 is a long stroke hydraulic spreader for inserting into clearance gaps as small as 1.26" (32 mm) and jaws which spread 11.5" (292 mm) wide.
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Maximum Spread | 11.50 in | 292 mm |
| Power Source | Hydraulic | Hydraulic |
| Spreading Force | 0.75 (imperial tons) | - |
| Maximum Spreading Force | 0.75 ton | 6 kN |
| Capacity | 0.75 (imperial tons) | - |
| Stroke | - | 32 mm |
| Tip Clearance | 1.26 in | 32.0 mm |
| Cylinder Effective Area | 2.25 in2 | 14.5 cm2 |
| Oil Capacity | 3.91 in3 | - |
| Weight | 25 lbs | 11.3 kg |
Weight
11.3000
Capacity (Tons)
0.75
