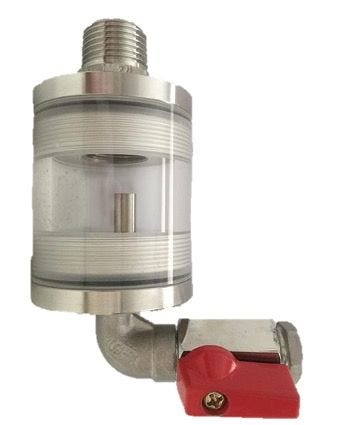

Bearing Oil Analyser Type 7S 1/2"NPT, confine space, 109mm OAL, for Pumps & Turbines. BOA (207721)

Bearing Oil Analyser Type 5S for Pumps & Turbines, HS code 841 391. BOA (203873), Features: Reasons for using bearing oil analyzer in your plant : *To improve the running time of the pumps the bearing oil must be kept in good condition. The BOA will give you an insight of what is happening with the oil in the bearing chamber. *Water is heavier than oil, so water will always settle in the bottom, hence the reason the bearing oil analyzer is mounted in the pump bracket drain plug. As little as .002% of water mixed in with oil will reduce the bearing life expectancy by 48% (see chart evaluation of water in bearing oil). This small amount of water can be found simply due to condensation (hot day and cool night). *Most refineries will take oil samples and send this to their laboratory for testing in order to assess a need for oil change Typically a sample is extracted from the fill point of the pump. Using a BOA one can open the valve during normal running, either drain out the water or take out the oil sample. *The purpose of the magnet is to collect metal particles, which comes from wear during running of the bearing. If there is a problem with the bearing, this will run hot and contaminate the oil. If you cannot see through the oil glass (un-clean oil or black) the oil might above 80 Deg C, which is the recommended maximum temperature from bearing manufactures. The pump need to be stopped immediately to avoid severe damage (bearing bracket - seal - impellor - pump housing).
