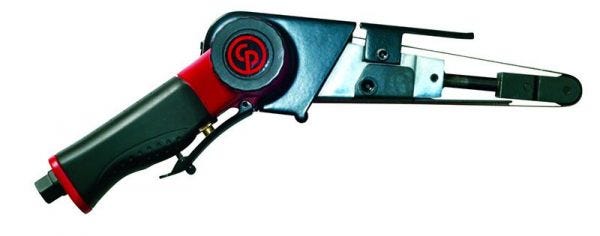

Belt Sander, 3/4"(20mm) x 20.1/2", pneumatic, pistol grip, adj sanding arm, 1/4"PT air inlet, CHICAGO PNEUMATIC (CP9780)
Chicago Pneumatic
out of stock
SKU #167946
M/C CP9780
$522.72
Belt Sander, 3/4"(20mm) x 20.1/2", pneumatic, pistol grip, adj sanding arm, 1/4"PT air inlet, CHICAGO PNEUMATIC (CP9780)
Benefits:
- Rubber molded grip, handle exhaust and swivel air inlet for better operator comfort
- Quick change belt replacement for easier maintenance
- Adjustable sanding arm
Specifications:
| Air consumption at load | 63 cfm / 30 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Autobalancer | No |
| Belt Size WxL (in) | 3/4x20-1/2 |
| Belt Size WxL (mm) | 20x520 |
| Length (L) | 14.96 in / 380 mm |
| Exhaust | Rear |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 14 cfm / 6.9 l/s |
| Main Material type | Aluminium, Composite over-sleeve |
| Max dynamic air working pressure | 91 psi / 6.3 bar |
| Max power | 0.51 hp / 380 W |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Overspeed shut-off | No |
| Rotative inlet | No |
| Sound Power | 101.5 dB(A) |
| Sound Pressure | 90.5 dB(A) |
| Starting system | Safety lever |
| Vibration (m/s²) | <2.5 |
| Weight | 3.31 lb / 1.5 kg |
Weight
1.5000 kgs
Packaging Weight (kg)
1.78
Carton Box Length (mm)
275
Carton Box Width (mm)
95
Carton Box Height (mm)
120
