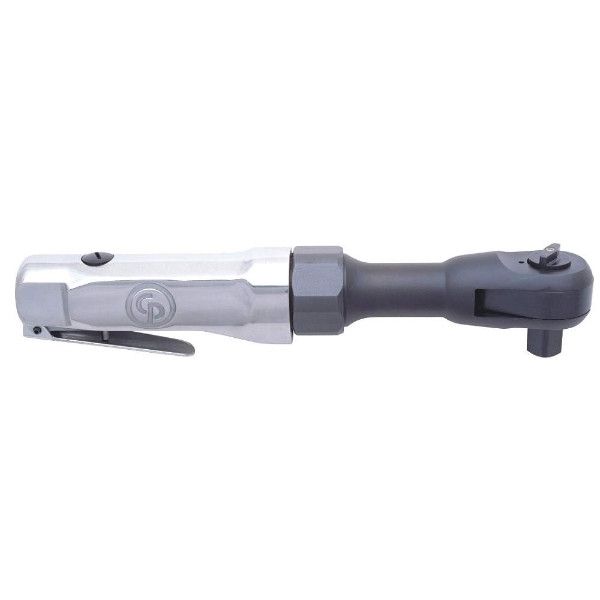

Ratchet Wrench, 1/2'' Square Drive, Pneumatic, Max.Torque FWD 13Nm - 68Nm, (10Ftlb - 50Ftlb), CHICAGO PNEUMATIC (CP828H)
Chicago Pneumatic
in stock
SKU #202528
M/C CP828H
$294.39
Ratchet Wrench, 1/2'' Square Drive, Pneumatic, Max.Torque FWD 13Nm - 68Nm, (10Ftlb - 50Ftlb), CHICAGO PNEUMATIC (CP828H)
Benefits:
- Aluminium alloy head and CP's patented TriSpring anti-slip head design lead to greater durability
- Grease fitting on the reverse button for easier lubrication
Specifications:
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Length (L) | 10 in / 254 mm |
| Free Speed | 150 rpm |
| Main Material type | Aluminum |
| Max dynamic air working pressure | 91 psi / 6.3 bar |
| Max working torque reverse | 51.6 ft.lbf / 70 Nm |
| Max torque reverse | 51.6 ft.lbf / 70 Nm |
| Min hose diam (5 m hose length) | 10 mm |
| Min working torque reverse | 9.6 ft.lbf / 13 Nm |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Ball detent |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Starting system | Lever |
| Uncertainty vibration-K | 4.3 ft/s² / 1.3 m/s² |
| Vibration (m/s²) | 3.2 |
| Weight | 2.43 lb / 1.1 kg |
Weight
1.1000 kgs
Packaging Weight (kg)
1.31
Carton Box Length (mm)
285
Carton Box Width (mm)
50
Carton Box Height (mm)
115
Drive Size
1/2''
