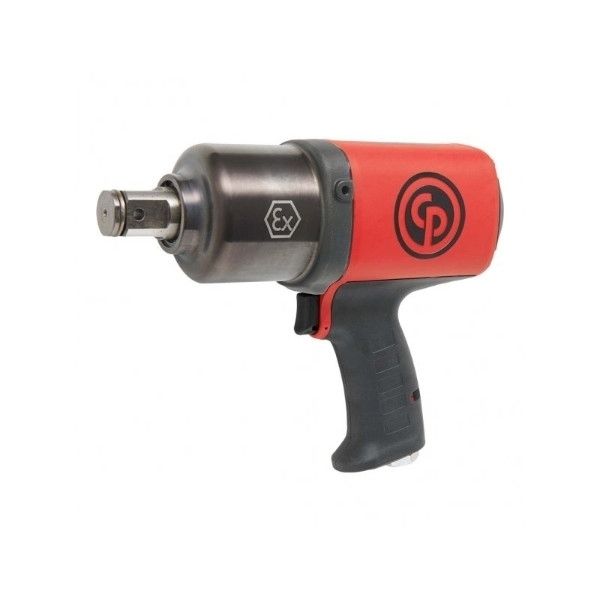

Impact Wrench, 1'' Square Drive, Pneumatic, Torque 406-1464Nm (300 to 1080 Ft/lbs), ATEX, Ex-Proof, CHICAGO PNEUMATIC (CP6778EX-P18D)
SKU #206301
M/C CP6778EX-P18D
Impact Wrench, 1'' Square Drive, Pneumatic, Torque 406-1464Nm (300 to 1080 Ft/lbs), ATEX, Ex-Proof, CHICAGO PNEUMATIC (CP6778EX-P18D)
The Chicago Pneumatic CP6778EX is an ATEX-certified 1" pneumatic impact wrench delivering reverse torque from 406 to 1,464 Nm (300–1,080 ft/lbs) in hazardous environments. IP6 dust-proof and ATEX certified, it is designed for the most demanding applications in offshore, mining, petrochemical, and chemical processing industries.
The oil bath twin hammer clutch mechanism provides durability under continuous high-torque use, while the steel and composite housing balances strength with manageable tool weight.
Key features
- Reverse torque: 406–1,464 Nm (300–1,080 ft/lbs)
- Square drive: 1"
- ATEX certification + IP6 dust-proof
- Oil bath twin hammer clutch mechanism
- Steel housing with composite body
- Ring or dual socket retainer options
Key applications: ATEX hazardous areas, offshore oil & gas, petrochemical, heavy industrial maintenance.
Benefits:
- Reliable twin hammer clutch mechanism in oil bath for hard joint applications.
- ATEX certified IP6 dust-proof
- Square drive shaft with ring or dual version for a wide variety of applications
- Low noise and low vibration for operator comfort
- Comfortable handle with rubber grip & suspension bail included
Specifications:
| Blow per minute | 1050 |
| Body | Composite |
| Clutch housing | Steel |
| Clutch lubrication type | Oil bath |
| Length (L) | 10.04 in / 255 mm |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Min hose diam (5 m hose length) | 13 mm |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Starting system | Trigger |
| Suspension option | Included |
| Weight | 10.1 lb / 4.6 kg |
Weight
4.600000 kgs
Packaging Weight (kg)
5.17
Package Length (mm)
285
Package Width (mm)
100
Carton Box Height (mm)
260
