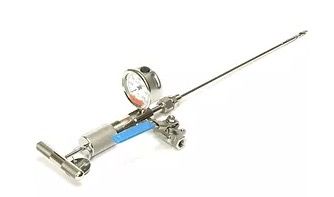

Bleeder Cleaner, Straight Worm 2550-L, 12'' reach, 1/2''Con, 9/32'' cutter, type 2 packing. LAWTON (2550L2-12)
SKU #168113
M/C 2550L2-12
Eye/Face Wash Unit, Stainless Steel Bowl, Pedestal. Hughes (H-STD85GSP)
Product Details:
Valves:
– Virtually unbreakable.
– Purpose built patented design.
– Full bore ball valve.
– PTFE seals.
– Made from fully 316 stainless steel.
– 360 degree positively angled spindle.
– Fully enclosed valve stop assembly.
– Glass reinforced nylon lever.
Spray Nozzle:
– Heady duty glass reinforced moulded nylon construction.
– Cyclonic delivery conical spray profile
– Complies with ANSI and Australian Standard spray profile requirements even at lower water pressures.
– Unlike common shower roses it will not become blocked by smaller particles.
Piping:
– All pipes are made from semi-polished 304 stainless steel.
– All fittings are made from 316 stainless steel.
– Fully 316 stainless steel models are also available.
Construction:
– The modular approach to construction provides maximum flexibility. All optional fittings including eyewash, eyewash operation pedal, signage and lighting can be easily retro-fitted to your safety shower if required.
Features;
Weight | 4 kg |
---|---|
Dimensions | 430 × 400 × 290 mm |
Features |
Location: Indoor |
Materials of Construction |
Eye/face wash bowl: 316L stainless steel |
Water Inlet |
1/2” Female BSP |
Design Operating Pressure |
2.0 to 6 BAR G (29 to 87 PSI) |
Test Pressure |
10.3 BAR G (149 PSI) |
Minimum Flow Rates |
Eye/Face Wash: 12 litres/minute minimum |
Minimum Ambient Operating Temperature |
5º C (41º F) |
Maximum Ambient Operating Temperature |
35º C (95º F) |
Activation/operation |
Push plate operated (optional foot treadle control for hands free operation) |
Weight
0.0000 kgs
