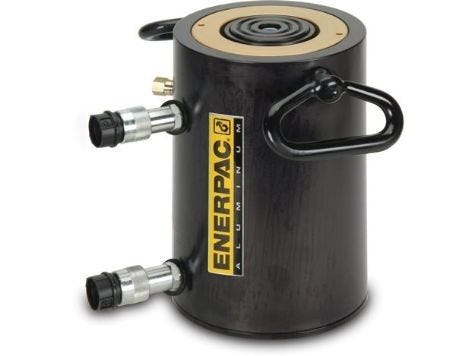

Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 5.91 in Stroke, ENERPAC (RAR1006)
Enerpac
out of stock
SKU #133532
M/C RAR1006
$6,067.42
Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 5.91 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 100 | 100 |
| Maximum Cylinder Capacity Advance | 110.9 (short tons) | 1002 kN |
| Stroke | 5.91 in | 150 mm |
| Collapsed Height A | 13.83 in | 351 mm |
| Extended Height B | 19.73 in | 501 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 22.19 in2 | 143.1 cm2 |
| Cylinder Effective Area Retract | 12.33 in2 | 79.5 cm2 |
| Oil Capacity Advance | 131.14 in3 | 2147 cm3 |
| Oil Capacity Retract | 72.87 in3 | 1193 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 48.9 lbs | 22.2 kg |
Weight
22.2000 kgs
Cylinder Type
General Purpose
Capacity (Tons)
100
Stroke Length (in)
5.91
Single / Double Acting
Double
Body Material
Aluminium
