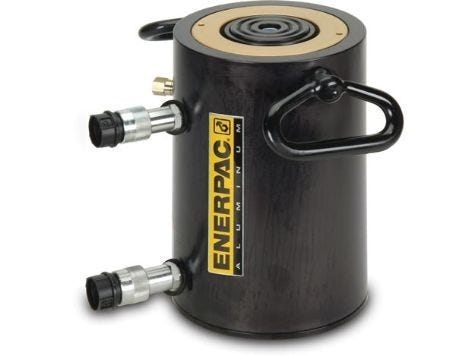

Hydraulic Cylinder, Double Acting, Aluminium, 150 Ton, 5.91 in Stroke, ENERPAC (RAR1506)
Enerpac
out of stock
SKU #133534
M/C RAR1506
$8,652.50
Hydraulic Cylinder, Double Acting, Aluminium, 150 Ton, 5.91 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 150 | 150 |
| Maximum Cylinder Capacity Advance | 175.9 (short tons) | 1589 kN |
| Stroke | 5.91 in | 150 mm |
| Collapsed Height A | 13.71 in | 348 mm |
| Extended Height B | 19.61 in | 498 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 35.18 in2 | 227.0 cm2 |
| Cylinder Effective Area Retract | 20.45 in2 | 132.0 cm2 |
| Oil Capacity Advance | 207.91 in3 | 3405 cm3 |
| Oil Capacity Retract | 120.86 in3 | 1980 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 73.2 lbs | 33.2 kg |
Weight
33.2000 kgs
Cylinder Type
General Purpose
Capacity (Tons)
150
Stroke Length (in)
5.91
Single / Double Acting
Double
Body Material
Aluminium
