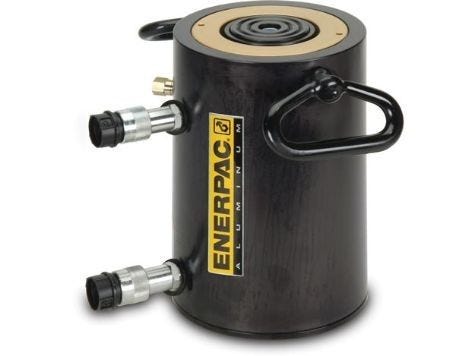

Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 9.84 in Stroke, ENERPAC (RAR10010)
Enerpac
out of stock
SKU #201187
M/C RAR10010
$8,271.03
Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 9.84 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 100 | 100 |
| Maximum Cylinder Capacity Advance | 110.9 (short tons) | 1002 kN |
| Stroke | 9.84 in | 250 mm |
| Collapsed Height A | 17.76 in | 451 mm |
| Extended Height B | 27.61 in | 701 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 22.19 in2 | 143.1 cm2 |
| Cylinder Effective Area Retract | 12.33 in2 | 79.5 cm2 |
| Oil Capacity Advance | 218.35 in3 | 3578 cm3 |
| Oil Capacity Retract | 121.33 in3 | 1988 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 61.7 lbs | 28.0 kg |
Weight
28.0000 kgs
Cylinder Type
General Purpose
Capacity (Tons)
100
Stroke Length (in)
9.84
Single / Double Acting
Double
Body Material
Aluminium
