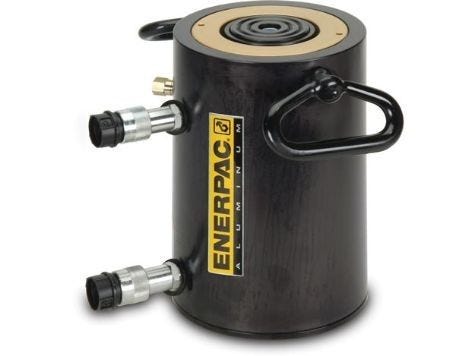

Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 1.97 in Stroke, ENERPAC (RAR1002)
Enerpac
out of stock
SKU #201188
M/C RAR1002
$4,701.19
Hydraulic Cylinder, Double Acting, Aluminium, 100 Ton, 1.97 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 100 | 100 |
| Maximum Cylinder Capacity Advance | 110.9 (short tons) | 1002 kN |
| Stroke | 1.97 in | 50 mm |
| Collapsed Height A | 9.89 in | 251 mm |
| Extended Height B | 11.86 in | 301 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 22.19 in2 | 143.1 cm2 |
| Cylinder Effective Area Retract | 12.33 in2 | 79.5 cm2 |
| Oil Capacity Advance | 43.71 in3 | 715 cm3 |
| Oil Capacity Retract | 24.29 in3 | 398 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 36.2 lbs | 16.4 kg |
Weight
16.4000
Cylinder Type
General Purpose
Capacity (Tons)
100
Stroke Length (in)
1.97
Single / Double Acting
Double
Body Material
Aluminium
