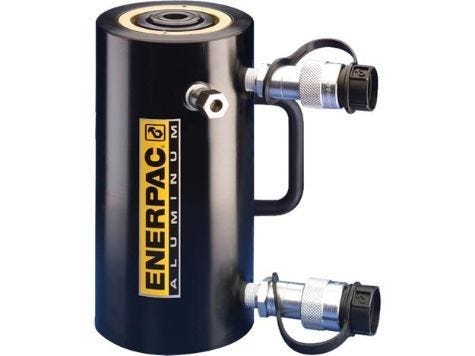

Hydraulic Cylinder, Double Acting, Aluminium, 20 Ton, 1.97 in Stroke, ENERPAC (RAR202)
Enerpac
out of stock
SKU #201194
M/C RAR202
$1,893.53
Hydraulic Cylinder, Double Acting, Aluminium, 20 Ton, 1.97 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 20 | 20 |
| Maximum Cylinder Capacity Advance | 24.2 (short tons) | 218 kN |
| Stroke | 1.97 in | 50 mm |
| Collapsed Height A | 7.45 in | 189 mm |
| Extended Height B | 9.42 in | 239 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 4.83 in2 | 31.2 cm2 |
| Cylinder Effective Area Retract | 2.88 in2 | 18.6 cm2 |
| Oil Capacity Advance | 9.52 in3 | 156 cm3 |
| Oil Capacity Retract | 5.67 in3 | 93 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 16.3 lbs | 7.4 kg |
Weight
7.4000 kgs
Cylinder Type
General Purpose
Capacity (Tons)
20
Stroke Length (in)
1.97
Single / Double Acting
Double
Body Material
Aluminium
