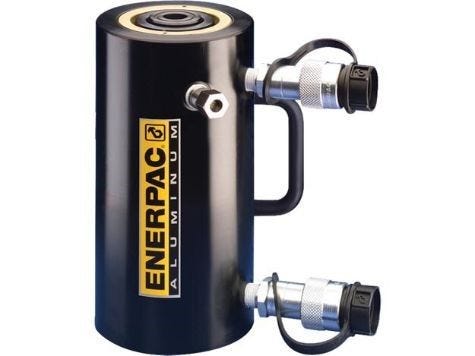

Hydraulic Cylinder, Double Acting, Aluminium, 30 Ton, 3.94 in Stroke, ENERPAC (RAR304)
Enerpac
out of stock
SKU #201200
M/C RAR304
$2,456.90
Hydraulic Cylinder, Double Acting, Aluminium, 30 Ton, 3.94 in Stroke
RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and controlled retraction.
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 30 | 30 |
| Maximum Cylinder Capacity Advance | 34.2 (short tons) | 309 kN |
| Stroke | 3.94 in | 100 mm |
| Collapsed Height A | 9.89 in | 251 mm |
| Extended Height B | 13.83 in | 351 mm |
| Return Type | Double-Acting, Hydraulic Return | Double-Acting, Hydraulic Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 6.85 in2 | 44.2 cm2 |
| Cylinder Effective Area Retract | 3.8 in2 | 24.5 cm2 |
| Oil Capacity Advance | 26.99 in3 | 442 cm3 |
| Oil Capacity Retract | 14.97 in3 | 245 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 20.9 lbs | 9.5 kg |
Weight
9.5000 kgs
Cylinder Type
General Purpose
Capacity (Tons)
30
Stroke Length (in)
3.94
Single / Double Acting
Double
Body Material
Aluminium
