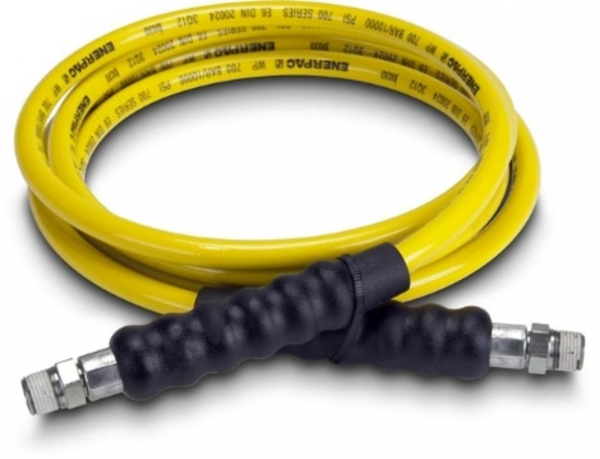

Hose Hydraulic, High Pressure, 20ft Length, 3/8'' NPTF Both End, .25'' I.D., ENERPAC (H7220)
SKU #133334
M/C H7220
Hose Hydraulic, High Pressure, 20ft Length, 3/8'' NPTF Both End, .25'' I.D.
Enerpac H700-Series hydraulic hoses have a 4:1 safety factor and can withstand a wide range of demanding high-pressure applications up to 10,000 psi (700 bar). Choose from two diameter sizes, a variety of connection types, and lengths up to 50 ft (15m).
Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.
Diameters available 0.25 and 0.38” (6.4 and 9.7mm), and connection types include ¼” NPTF, ⅜" NPTF and CH604.
Features:
- For demanding applications, featuring a 4:1 safety factor
- Maximum working pressure of 10,000 psi
- Outside jacket is polyurethane, to provide maximum abrasion resistance
- Exhibits low volumetric expansion under pressure to enhance overall system efficiency
- Vinyl strain relief guard on both ends of hose to improve life and durability on all models.
Specifications:
Imperial | Metric | |
Maximum Operating Pressure | 10,000 PSI | 700 bar |
Internal Diameter | 0.25 In | 6,4 mm |
End One Coupler | 3/8" NPTF | 3/8" NPTF |
End Two Coupler | 3/8" NPTF | 3/8" NPTF |
Oil Capacity | 11.78 in3 | 196,24 cm3 |
Length | 20 ft | 6,1 m |
Weight | 6.2 lbs | 2,8 kg |
Weight
2.8000 kgs
Body Material
ThermoPlastic
