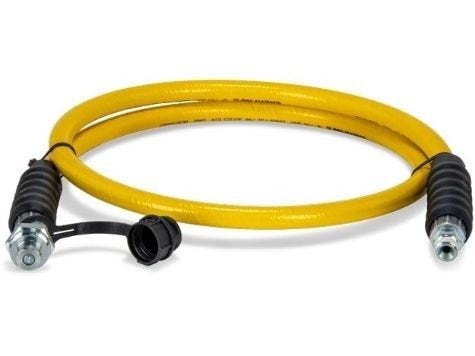

Hose Hydraulic, High Pressure, 6ft Length, w/CH-604, 3/8'' NPTF, .38'' I.D., ENERPAC (HC7306)

Enerpac
out of stock

SKU #133356

M/C HC7306


$340.79

Hose Hydraulic, High Pressure, 6ft Length, w/CH-604, 3/8'' NPTF, .38'' I.D

Enerpac H700-Series hydraulic hoses have a 4:1 safety factor and can withstand a wide range of demanding high-pressure applications up to 10,000 psi (700 bar). Choose from two diameter sizes, a variety of connection types, and lengths up to 50 ft (15m).

Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.

Diameters available 0.25 and 0.38” (6.4 and 9.7mm), and connection types include ¼” NPTF, ⅜" NPTF and CH604.

Features:

  • For demanding applications, featuring a 4:1 safety factor
  • Maximum working pressure of 10,000 psi
  • Outside jacket is polyurethane, to provide maximum abrasion resistance
  • Exhibits low volumetric expansion under pressure to enhance overall system efficiency
  • Vinyl strain relief guard on both ends of hose to improve life and durability on all models.

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 PSI 700 bar
Internal Diameter 0.38 In 9,7 mm
End One Coupler 3/8" NPTF 3/8" NPTF
End Two Coupler CH604 CH604
Oil Capacity 8.16 in3 133,02 cm3
Length 6 ft 1,8 m
Weight 3.5 lbs 1,7 kg

Weight

1.7000 kgs

Body Material

ThermoPlastic
