Hose Hydraulic, High Pressure, 6ft Length, w/ two CH-604, .25'' I.D., ENERPAC (HC7206C)

Enerpac
in stock

SKU #143640

M/C HC7206C


$267.10
Add to Wish List

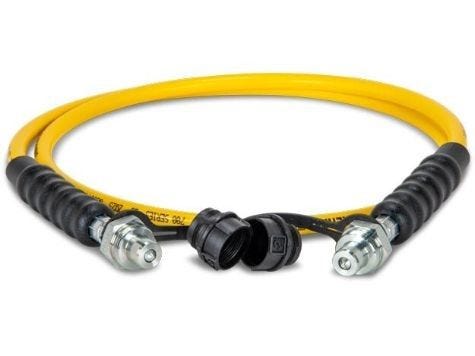

Hose Hydraulic, High Pressure, 6ft Length, w/ two CH-604, .25'' I.D.

Enerpac H700-Series hydraulic hoses have a 4:1 safety factor and can withstand a wide range of demanding high-pressure applications up to 10,000 psi (700 bar). Choose from two diameter sizes, a variety of connection types, and lengths up to 50 ft (15m).

Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.

Diameters available 0.25 and 0.38” (6.4 and 9.7mm), and connection types include ¼” NPTF, ⅜" NPTF and CH604.

Features:

  • For demanding applications, featuring a 4:1 safety factor
  • Maximum working pressure of 10,000 psi
  • Outside jacket is polyurethane, to provide maximum abrasion resistance
  • Exhibits low volumetric expansion under pressure to enhance overall system efficiency
  • Vinyl strain relief guard on both ends of hose to improve life and durability on all models.

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 PSI 700 bar
Internal Diameter 0.25 In 6,4 mm
End One Coupler CH604 CH604
End Two Coupler CH604 CH604
Oil Capacity 3.54 in3 57,91 cm3
Length 6 ft 1,8 m
Weight 2.4 lbs 1,1 kg

Weight

1.1000 kgs

Body Material

ThermoPlastic
