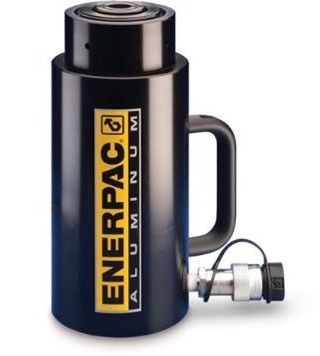

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 50 Ton, 3.94 in Stroke, ENERPAC (RACL504)
Enerpac
out of stock
SKU #133520
M/C RACL504
$3,054.05
Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 50 Ton, 3.94 in Stroke
RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 50 | 50 |
| Maximum Cylinder Capacity Advance | 54.9 (short tons) | 496 kN |
| Stroke | 3.94 in | 100 mm |
| Collapsed Height A | 11.26 in | 286 mm |
| Extended Height B | 15.21 in | 386 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 10.99 in2 | 70.9 cm2 |
| Oil Capacity Advance | 43.3 in3 | 709 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 23.4 lbs | 10.6 kg |
Weight
10.6000 kgs
Cylinder Type
Lock Nut Cylinder
Capacity (Tons)
50
Stroke Length (in)
3.94
Single / Double Acting
Single
Body Material
Aluminium
