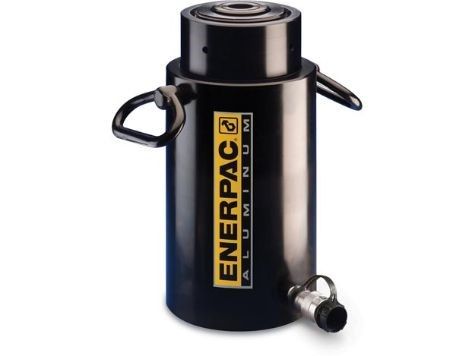

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 100 Ton, 7.87 in Stroke, ENERPAC (RACL1008)
Enerpac
out of stock
SKU #201174
M/C RACL1008
$5,860.18
Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 100 Ton, 7.87 in Stroke
RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 100 | 100 |
| Maximum Cylinder Capacity Advance | 110.9 (short tons) | 1002 kN |
| Stroke | 7.87 in | 200 mm |
| Collapsed Height A | 17.57 in | 446 mm |
| Extended Height B | 25.44 in | 646 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 22.19 in2 | 143.1 cm2 |
| Oil Capacity Advance | 174.64 in3 | 2863 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 63.4 lbs | 28.8 kg |
Weight
28.8000 kgs
Cylinder Type
Lock Nut Cylinder
Capacity (Tons)
100
Stroke Length (in)
7.87
Single / Double Acting
Single
Body Material
Aluminium
