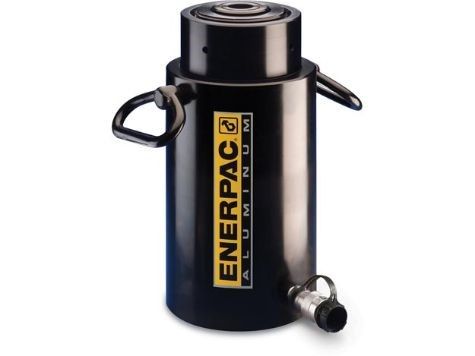

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 150 Ton, 7.87 in Stroke, ENERPAC (RACL1508)

Enerpac
out of stock

SKU #201176

M/C RACL1508


$12,265.32

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 150 Ton, 7.87 in Stroke

RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.

  • Aluminum Lock Nut provides mechanical load holding for extended periods
  • Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Composite bearings increase cylinder life and side load resistance
  • Handles included on all models
  • Steel base plate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR400 coupler and dustcap included on all models
  • All cylinders meet ASME B-30.1 standards

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 psi  700 bar
Capacity Class (tonnage) 150 150
Maximum Cylinder Capacity Advance 175.9 (short tons) 1589 kN
Stroke 7.87 in 200 mm
Collapsed Height A 18.62 in 473 mm
Extended Height B 26.49 in 673 mm
Return Type Single-Acting, Spring Return Single-Acting, Spring Return
Plunger Type Solid Solid
Material Aluminum Aluminum
Cylinder Effective Area Advance 35.18 in2 227.0 cm2
Oil Capacity Advance 276.87 in3 4540 cm3
Surface Treatment Anodized Anodized
Coupler CR400 Coupler CR400 Coupler
Weight 97.4 lbs 44.2 kg

Weight

44.2000

Cylinder Type

Lock Nut Cylinder

Capacity (Tons)

150

Stroke Length (in)

7.87

Single / Double Acting

Single

Body Material

Aluminium
