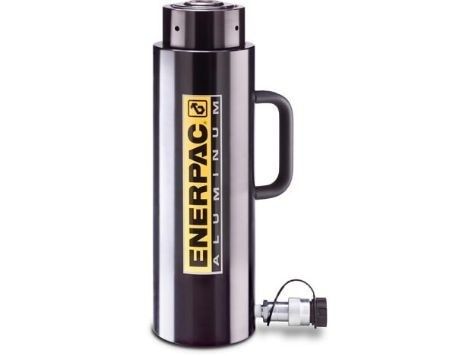

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 20 Ton, 7.87 in Stroke, ENERPAC (RACL208)

Enerpac
out of stock

SKU #201181

M/C RACL208


$2,591.21

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 20 Ton, 7.87 in Stroke

RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.

  • Aluminum Lock Nut provides mechanical load holding for extended periods
  • Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Composite bearings increase cylinder life and side load resistance
  • Handles included on all models
  • Steel base plate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR400 coupler and dustcap included on all models
  • All cylinders meet ASME B-30.1 standards

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 psi  700 bar
Capacity Class (tonnage) 20 20
Maximum Cylinder Capacity Advance 24.2 (short tons) 218 kN
Stroke 7.87 in 200 mm
Collapsed Height A 14.73 in 374 mm
Extended Height B 22.61 in 574 mm
Return Type Single-Acting, Spring Return Single-Acting, Spring Return
Plunger Type Solid Solid
Material Aluminum Aluminum
Cylinder Effective Area Advance 4.83 in2 31.2 cm2
Oil Capacity Advance 38.01 in3 624 cm3
Surface Treatment Anodized Anodized
Coupler CR400 Coupler CR400 Coupler
Weight 12.7 lbs 5.8 kg

Weight

5.8000

Cylinder Type

Lock Nut Cylinder

Capacity (Tons)

20

Stroke Length (in)

7.87

Single / Double Acting

Single

Body Material

Aluminium
