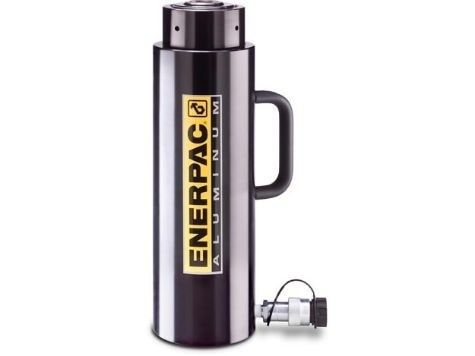

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 30 Ton, 9.84 in Stroke, ENERPAC (RACL3010)
Enerpac
out of stock
SKU #201182
M/C RACL3010
$2,944.30
Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 30 Ton, 9.84 in Stroke
RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications:
Imperial | Metric | |
Maximum Operating Pressure | 10,000 psi | 700 bar |
Capacity Class (tonnage) | 30 | 30 |
Maximum Cylinder Capacity Advance | 34.2 (short tons) | 309 kN |
Stroke | 9.84 in | 250 mm |
Collapsed Height A | 16.98 in | 431 mm |
Extended Height B | 26.82 in | 681 mm |
Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
Plunger Type | Solid | Solid |
Material | Aluminum | Aluminum |
Cylinder Effective Area Advance | 6.85 in2 | 44.2 cm2 |
Oil Capacity Advance | 67.4 in3 | 1105 cm3 |
Surface Treatment | Anodized | Anodized |
Coupler | CR400 Coupler | CR400 Coupler |
Weight | 18 lbs | 8.2 kg |
Weight
8.2000 kgs
Cylinder Type
Lock Nut Cylinder
Capacity (Tons)
30
Stroke Length (in)
9.84
Single / Double Acting
Single
Body Material
Aluminium
