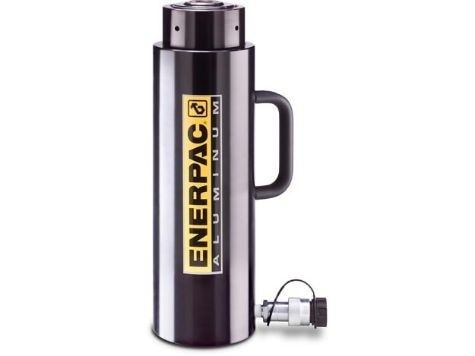

Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 30 Ton, 5.91 in Stroke, ENERPAC (RACL306)
Enerpac
out of stock
SKU #201185
M/C RACL306
$2,766.99
Hydraulic Cylinder, Single Acting, Aluminium Lock Nut, 30 Ton, 5.91 in Stroke
RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return, and include a lock nut for safe mechanical load holding.
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 30 | 30 |
| Maximum Cylinder Capacity Advance | 34.2 (short tons) | 309 kN |
| Stroke | 5.91 in | 150 mm |
| Collapsed Height A | 13.04 in | 331 mm |
| Extended Height B | 18.95 in | 481 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Aluminum | Aluminum |
| Cylinder Effective Area Advance | 6.85 in2 | 44.2 cm2 |
| Oil Capacity Advance | 40.48 in3 | 663 cm3 |
| Surface Treatment | Anodized | Anodized |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 14.9 lbs | 6.8 kg |
Weight
6.8000 kgs
Cylinder Type
Lock Nut Cylinder
Capacity (Tons)
30
Stroke Length (in)
5.91
Single / Double Acting
Single
Body Material
Aluminium
