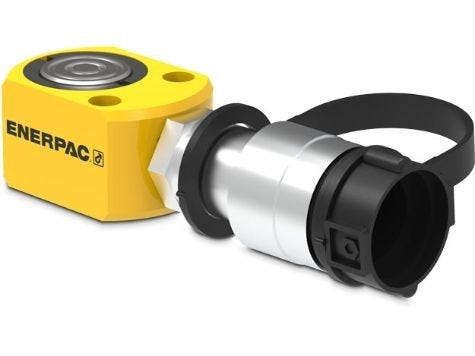

Hydraulic Cylinder, Low Height 10 Ton, ENERPAC (RSM100)
Enerpac
in stock
SKU #133588
M/C RSM100
$561.08
Hydraulic Cylinder, Low Height 10 Ton
RSM-Series Low Profile Hydraulic Cylinders (Pancake Jacks) feature a short-collapsed height, mounting holes for easy fixing, and a spring return for fast retraction.
- Compact, flat design for use where other cylinders will not fit
- Handles for easy carrying
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 10 | 10 |
| Maximum Cylinder Capacity Advance | 11.2 (short tons) | 101 kN |
| Stroke | 0.44 in | 11 mm |
| Collapsed Height A | 1.69 in | 43 mm |
| Extended Height B | 2.13 in | 54 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Steel | Steel |
| Cylinder Effective Area Advance | 2.24 in2 | 14.5 cm2 |
| Oil Capacity Advance | 0.98 in3 | 18 cm3 |
| Surface Treatment | Paint | Paint |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 3.1 lbs | 1.4 kg |
Weight
1.4000 kgs
Cylinder Type
Low Height
Capacity (Tons)
10
Stroke Length (in)
0.44
Single / Double Acting
Single
Body Material
Steel
