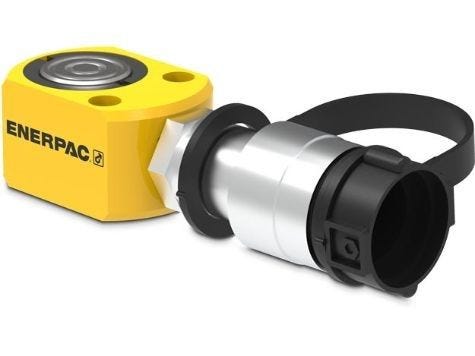

Hydraulic Cylinder, Low Height 20 Ton, ENERPAC (RSM200)
Enerpac
in stock
SKU #133589
M/C RSM200
$934.87
Hydraulic Cylinder, Low Height 20 Ton
RSM-Series Low Profile Hydraulic Cylinders (Pancake Jacks) feature a short-collapsed height, mounting holes for easy fixing, and a spring return for fast retraction.
- Compact, flat design for use where other cylinders will not fit
- Handles for easy carrying
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 20 | 20 |
| Maximum Cylinder Capacity Advance | 22.1 (short tons) | 201 kN |
| Stroke | 0.44 in | 11 mm |
| Collapsed Height A | 2.03 in | 51 mm |
| Extended Height B | 2.47 in | 62 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Steel | Steel |
| Cylinder Effective Area Advance | 4.43 in2 | 28.7 cm2 |
| Oil Capacity Advance | 1.94 in3 | 32 cm3 |
| Surface Treatment | Paint | Paint |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 6.8 lbs | 3.1 kg |
Weight
3.1000 kgs
Cylinder Type
Low Height
Capacity (Tons)
20
Stroke Length (in)
0.44
Single / Double Acting
Single
Body Material
Steel
