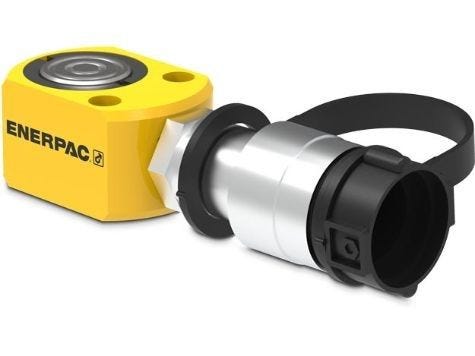

Hydraulic Cylinder, Low Height 30 Ton, ENERPAC (RSM300)

Enerpac
in stock

SKU #133590

M/C RSM300


$1,082.24
Add to Wish List

Hydraulic Cylinder, Low Height 30 Ton

RSM-Series Low Profile Hydraulic Cylinders (Pancake Jacks) feature a short-collapsed height, mounting holes for easy fixing, and a spring return for fast retraction.

  • Compact, flat design for use where other cylinders will not fit
  • Handles for easy carrying
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return

Specifications:

  Imperial Metric
Maximum Operating Pressure 10,000 psi 700 bar
Capacity Class (tonnage) 30 30
Maximum Cylinder Capacity Advance 32.4  (short tons) 295 kN
Stroke 0.5 in 13 mm
Collapsed Height A 2.31 in 58 mm
Extended Height B 2.81 in 71 mm
Return Type Single-Acting, Spring Return Single-Acting, Spring Return
Plunger Type Solid Solid
Material Steel Steel
Cylinder Effective Area Advance 6.49 in2 42.1 cm2
Oil Capacity Advance 3.25 in3 55 cm3
Surface Treatment Paint Paint
Coupler CR400 Coupler CR400 Coupler
Weight 10 lbs 4.5 kg

Weight

4.5000

Cylinder Type

Low Height

Capacity (Tons)

30

Stroke Length (in)

0.5

Single / Double Acting

Single

Body Material

Steel
