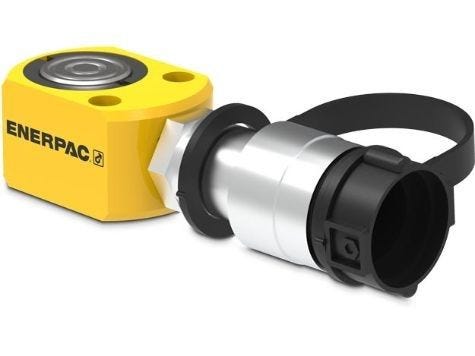

Hydraulic Cylinder, Low Height 50 Ton, ENERPAC (RSM500)
Enerpac
in stock
SKU #133591
M/C RSM500
$1,261.08
Hydraulic Cylinder, Low Height 50 Ton
RSM-Series Low Profile Hydraulic Cylinders (Pancake Jacks) feature a short-collapsed height, mounting holes for easy fixing, and a spring return for fast retraction.
- Compact, flat design for use where other cylinders will not fit
- Handles for easy carrying
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 50 | 50 |
| Maximum Cylinder Capacity Advance | 48.1 (short tons) | 435 kN |
| Stroke | 0.63 in | 16 mm |
| Collapsed Height A | 2.63 in | 66 mm |
| Extended Height B | 3.25 in | 82 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Steel | Steel |
| Cylinder Effective Area Advance | 9.62 in2 | 62.1 cm2 |
| Oil Capacity Advance | 6.01 in3 | 99 cm3 |
| Surface Treatment | Paint | Paint |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 15 lbs | 6.8 kg |
Weight
6.8000 kgs
Cylinder Type
Low Height
Capacity (Tons)
50
Stroke Length (in)
0.63
Single / Double Acting
Single
Body Material
Steel
