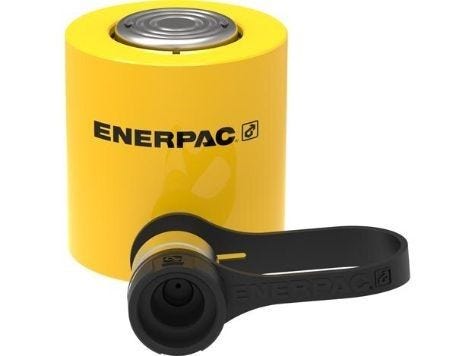

Hydraulic Cylinder, Low Height 20 Ton, ENERPAC (RCS201)
Enerpac
in stock
SKU #135045
M/C RCS201
$828.95
Hydraulic Cylinder, Low Height 20 Ton
RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
Specifications:
| Imperial | Metric | |
| Maximum Operating Pressure | 10,000 psi | 700 bar |
| Capacity Class (tonnage) | 20 | 20 |
| Maximum Cylinder Capacity Advance | 22.1 (short tons) | 201 kN |
| Stroke | 1.75 in | 45 mm |
| Collapsed Height A | 3.88 in | 98 mm |
| Extended Height B | 5.63 in | 143 mm |
| Return Type | Single-Acting, Spring Return | Single-Acting, Spring Return |
| Plunger Type | Solid | Solid |
| Material | Steel | Steel |
| Cylinder Effective Area Advance | 4.43 in2 | 28.7 cm2 |
| Oil Capacity Advance | 7.75 in3 | 129 cm3 |
| Surface Treatment | Paint | Paint |
| Coupler | CR400 Coupler | CR400 Coupler |
| Weight | 11 lbs | 5.0 kg |
Weight
5.0000 kgs
Cylinder Type
Low Height
Capacity (Tons)
20
Stroke Length (in)
1.75
Single / Double Acting
Single
Body Material
Steel
