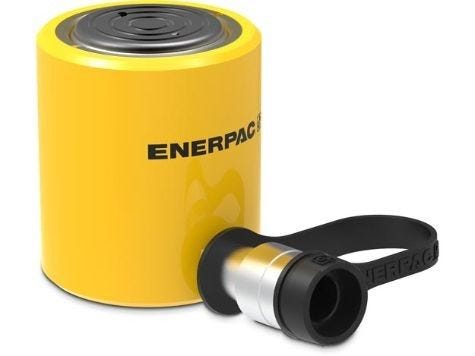

Hydraulic Cylinder, Low Height 30 Ton, ENERPAC (RCS302)

Enerpac
out of stock

SKU #135046

M/C RCS302


$925.66

Hydraulic Cylinder, Low Height 30 Ton

RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • CR-400 coupler and dust cap included on all models
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Single-acting spring return

Specifications:

  Imperial Metric
Maximum Operating Pressure  10,000 psi  700 bar
Capacity Class (tonnage) 30 30
Maximum Cylinder Capacity Advance 32.4 (short tons) 295 kN
Stroke 2.44 in 62 mm
Collapsed Height A 4.63 in 117 mm
Extended Height B 7.06 in 179 mm
Return Type Single-Acting, Spring Return Single-Acting, Spring Return
Plunger Type Solid Solid
Material Steel Steel
Cylinder Effective Area Advance 6.49 in2 42.1 cm2
Oil Capacity Advance 15.82 in3 261 cm3
Surface Treatment Paint Paint
Coupler CR400 Coupler CR400 Coupler
Weight 15 lbs 6.8 kg

Weight

6.8000

Cylinder Type

Low Height

Capacity (Tons)

30

Stroke Length (in)

2.44

Single / Double Acting

Single

Body Material

Steel
