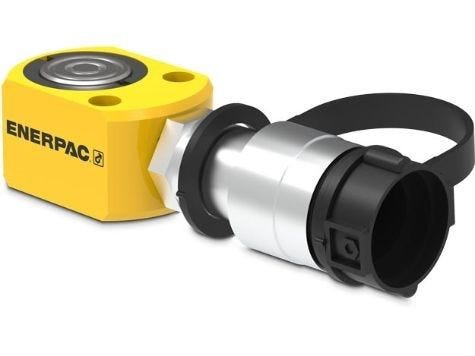

Hydraulic Cylinder, Low Height 5 Ton, ENERPAC (RSM50)

Enerpac
in stock

SKU #135065

M/C RSM50


$392.21
Add to Wish List

Hydraulic Cylinder, Low Height 5 Ton

RSM-Series Low Profile Hydraulic Cylinders (Pancake Jacks) feature a short-collapsed height, mounting holes for easy fixing, and a spring return for fast retraction.

  • Compact, flat design for use where other cylinders will not fit
  • Handles for easy carrying
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return

Specifications:

  Imperial Metric
Maximum Operating Pressure  10,000 psi  700 bar
Capacity Class (tonnage)  5
Maximum Cylinder Capacity Advance 4.9  (short tons) 45 kN
Stroke  0.25 in 6 mm
Collapsed Height A  1.28 in 32 mm
Extended Height B 1.53 in  38 mm
Return Type  Single-Acting, Spring Return  Single-Acting, Spring Return
Plunger Type  Solid  Solid
Material  Steel  Steel
Cylinder Effective Area Advance  0.99 in2 6.5 cm2
Oil Capacity Advance  0.25 in3  4 cm3
Surface Treatment  Paint  Paint
Coupler  AR400  AR400
Weight  2.3 lbs  1.0 kg



Weight

1.0000

Cylinder Type

Low Height

Capacity (Tons)

5

Stroke Length (in)

0.25

Single / Double Acting

Single

Body Material

Steel
