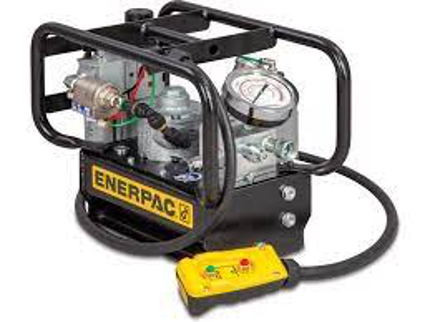

Pump, Air, Torque Wrench, Lightweight 4L, ENERPAC (LA2504TX-QR)
SKU #212036
M/C LA2504TX-QR
Pump, Air, Torque Wrench, Lightweight 4L, ENERPAC (LA2504TX-QR)
Pump, Air, Torque Wrench, Lightweight 4L
The Enerpac LAT Torque Wrench Pump combines compact design and high productivity for bolting applications in areas hard to access with larger air powered pumps. Whether on an offshore platform, refinery or mine anywhere in the world, the pump is built for the toughest worksite environments. Featuring a proven Enerpac piston design, reinforced FRL support and air supply connection, the LAT will provide years of reliable service with fastening and breakout speeds to keep you on schedule and under budget.
Improved Operator Efficiency and Ergonomics
- Easy to lift, transport and maneuver
- Hand carry where no crane, hoist or elevator is available
- One person can easily transport it from site to site
- Ideal for use on narrow or constrained scaffolding, catwalks, pipe racks and lifts
High Productivity
- Proven 3 piston design provides leading fastening and breakout speed to stay on time and under budget
- ATEX certified to meet worksite compliance requirements
Reduce Equipment Downtime
- Roll cage with reinforcement to support and protect FRL
- Rugged 1/2" air supply connection with integrated roll cage support
- Key components are easy to access and service
Standard Features
- 4,5 m pendant cord for mobility around work site
- 100 mm calibrated gauge with certificate, scale in psi and bar
- Roll cage and Filter-Regulator-Lubricator (FRL)
Specifications:
Maximum Operating Pressure (Bar)
For Use With Torque Wrenches
Reservoir Capacity (cm3)
Reservoir Capacity (litres)
Usable Oil Capacity (litres)
Maximum Flow at Rated Pressure
Oil Flow per Outlet at 700 bar (l/min)
Output Flow Rate at 350 bar (l/min)
Output Flow Rate at 700 bar (l/min)
Power Source
Pump Control
Air Pressure Range (bar)
Air Consumption (l/min)
Sound Level (dBa)
Relief Valve Adjustment Range (bar)
Packaging Dimensions (mm)
Weight (kg)
700
For use with all Enerpac torque wrenches
3000
3,0
1,9
0,4 l/min
0,4
0,6
0,4
Air
Pendant
4,5-6,9
1389
87 - 90
138 - 700
584 x 562 x 460
18,0
Operation Type
Pneumatic
