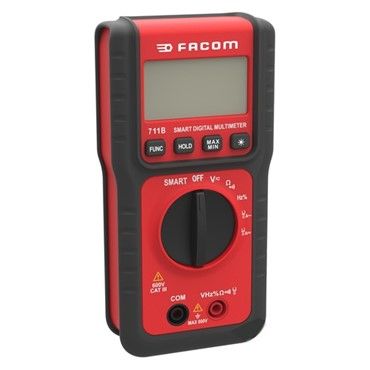

Multimeter, Smart DMM, FACOM (711BPB)

Multimeter, Smart DMM

Features:

• SMART FUNCTION
• The multimeter automatically chooses the measurement to display
• UNIVERSAL POINTS
• thanks to the removable cap:
• Short points (CAT III) = safety for currents> 50V
• Long points (CAT II) = accessibility for currents <50V
• 2 line display screen
• Directly displays Amps when used with FACOM Ammeter Clamps
• Min Max mode: ideal for measurements of sensors and probes
• Current clamp :
• Fits on FACOM multimeters type 711, 714, ...
• Allows non-contact current measurements
• Compatible with multimeters capable of measuring mV

Specifications:

• Multimeter:
• Voltmeter: AC / DC from 0 to 600 V
• Resistance measurement 10 MΩ and continuity
• Frequency meter: 0 to 3 kHz
• TRMS, CAT III, ETL / CE measurement
• delivere with 2 CAT II & CAT III touch points
• Current clamp :
• AC and DC AC current measurement
• AC / DC: 20 A 400 A
• AC / DC: 400 A 1500 A
• Diameter of the jaws: 53 mm
• Maximum diameter of cable 52 mm
• Category IV 600 Volts
• L. x W. x H.: 70 x 47x 155 mm.
• Weight: 0.32 kg
