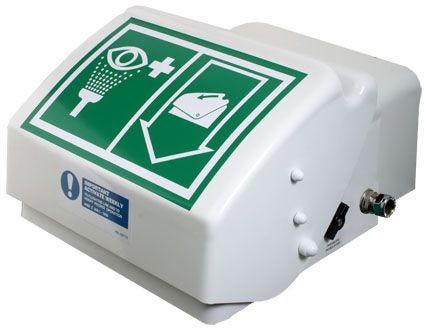

Eye/Face Wash unit, Covered, Bench Mounted

Product Details:

Valves:
– Virtually unbreakable.
– Purpose built patented design.
– Full bore ball valve.
– PTFE seals.
– Made from fully 316 stainless steel.
– 360 degree positively angled spindle.
– Fully enclosed valve stop assembly.
– Glass reinforced nylon lever.

Spray Nozzle:
– Heady duty glass reinforced moulded nylon construction.
– Cyclonic delivery conical spray profile
– Complies with ANSI and Australian Standard spray profile requirements even at lower water pressures.
– Unlike common shower roses it will not become blocked by smaller particles.

Piping:
– All pipes are made from semi-polished 304 stainless steel.
– All fittings are made from 316 stainless steel.
– Fully 316 stainless steel models are also available.

Construction:
– The modular approach to construction provides maximum flexibility. All optional fittings including eyewash, eyewash operation pedal, signage and lighting can be easily retro-fitted to your safety shower if required.

Weight	10 kg
Dimensions	320 × 464 × 1175 mm
Features	Location: Indoor Type: Plumbed in Installation: Pedestal Mounted Eye/face wash bowl construction: Closed ABS Bowl Pipework: Stainless Steel Operation: Integral pull-down lid to start water flow. Wall mount and bench mount units available as hand or hand/foot operated. Designed in accordance with ANSI and EU standards. Integral lid connects to the water valve for automatic operation when the lid is pulled down. The lid also ensures that the bowl remains clean and free from contamination. High flow rate aerated diffusers provide an improved washing action and prevent further injury to the eyes. Flow regulator valve ensures an optimum water flow. Tough, durable construction with corrosion and UV resistance.
Pipework and Fittings	316L stainless steel with 150lb medium wall tubulars and fittings
Eye/face Wash Bowl/lid	Acrylic Capped ABS
Eye/face Wash Diffusers	Chrome plated brass with stainless steel mesh
Standard Finish	Polished brush finish (paint options available)
Water Inlet	1/4” Female BSP
Design Operating Pressure	2.0 to 6 BAR G (29 to 87 PSI) (higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)
Test Pressure	10.3 BAR G (149 PSI)
Minimum Flow Rates	Eye/Face Wash: 12 litres/minute minimum
Minimum Ambient Operating Temperature	5º C (41º F)
Maximum Ambient Operating Temperature	35º C (95º F)
Activation/operation	Pull lid forward to operate (optional foot treadle control for hands free operation)

Weight

1.3600 kgs

Eye/Face Wash unit, Covered, Bench Mounted, HUGHES (H-STD45GT)
